Manufacturing
Sheet metal processing
Burning lines (flame cutting)
Designation: Zinser 2425
Working area
Length: 7 m
Width: 3 m
Oxy-fuel burner
Number of burners: 3
Max. sheet thickness steel: 100 mm
Laser system (laser cutting)
Designation: Mazak Optiplex Nexus 3015 Fiber
Working area:
Length: 3 m
Width: 1.5 m
Max. sheet thickness steel: 15 mm
Max. sheet thickness for precision cuts in steel:
10 mm
CNC press brake
Designation: Bystronic Xpert 250
Working area:
Max. sheet thickness: 15 mm
Max. sheet width: 3 m
Control system: CNC + CAM software
Machining
CNC lathe 1
Designation (manufacturer and type): Mazak Quick Turn 20N
Swing diameter over bed: 320 mm
Swing diameter over slide: 320 mm
Turning diameter between centers: 320 mm
Workpiece length between centers: 1 m
Workpiece weight in the chuck: 247kg, approx. 250 kg
Workpiece weight between centers:
247 kg, approx. 250 kg
Control system: Mazatrol Cam T-2
CNC lathe 2
Designation (manufacturer and type): Mazak Quick Turn Nexus 250- II
Swing diameter over bed: 320 mm
Swing diameter over slide: 320 mm
Turning diameter between centers: 320 mm
Workpiece length between centers: 1 m
Workpiece weight in the chuck: 247kg, approx. 250 kg
Workpiece weight between centers:
247 kg, approx. 250 kg
Control system: Mazatrol Matrix Nexus
CNC lathe 3
Designation (manufacturer and type): Daewoo Puma 350
Swing diameter over bed: 500 mm
Swing diameter over slide: 500 mm
Turning diameter between centers: 400 mm
Workpiece length between centers: 1 m
Workpiece weight in the chuck: 500 kg
Workpiece weight between centers: 500 kg
Control system: Fanuc series 18T
CNC milling machine 1
Designation (manufacturer and type): MTE BF-3200
Working area:
X-axis: 3000 mm
Y-axis: 1200 mm
Z-axis: 2000 mm
Max. turning diameter: 1200 mm
Workpiece weight incl. clamping device: 11 t
Control system: Heidenhain 530

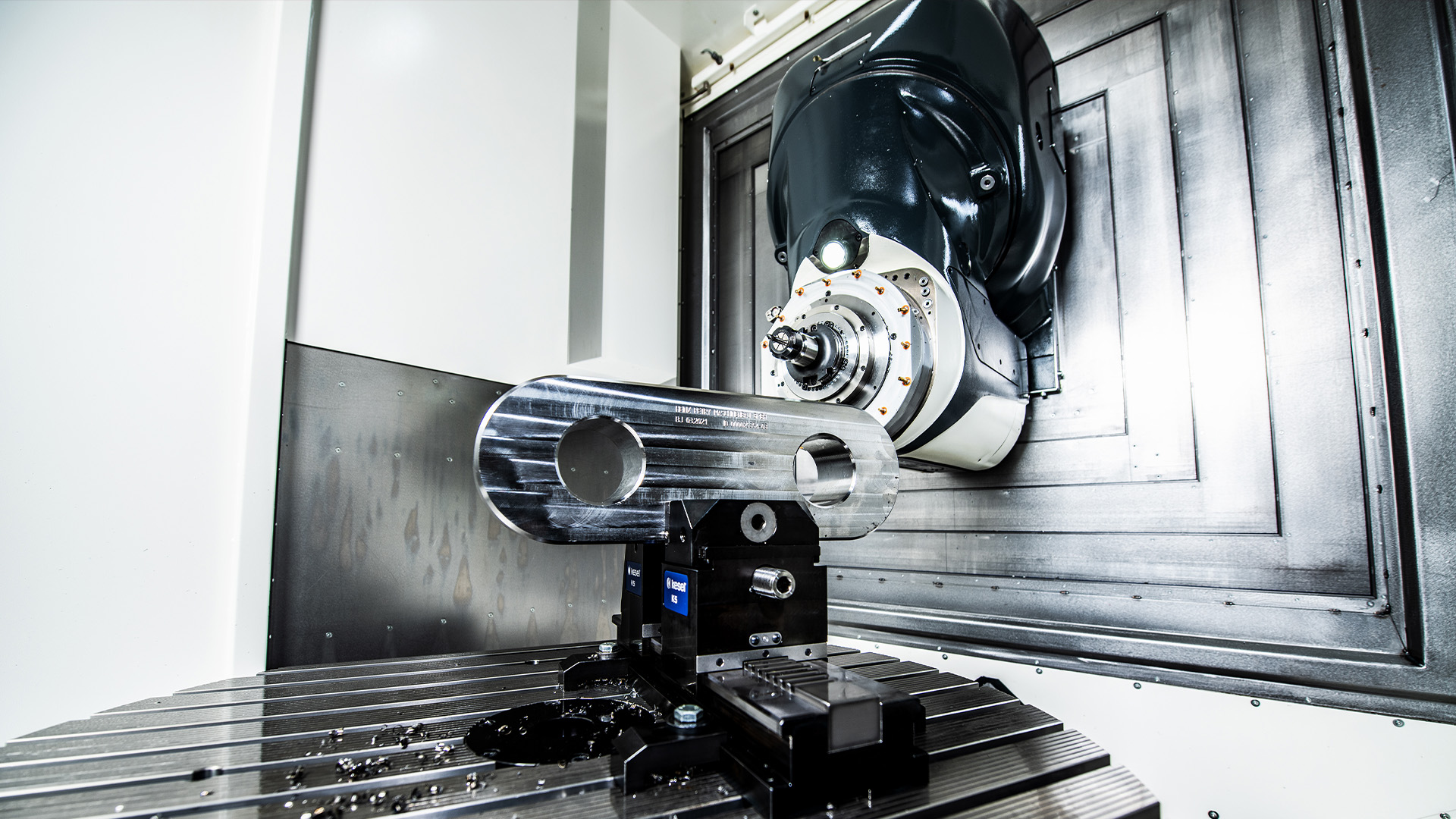

CNC milling machine 2
Designation (manufacturer and type): DMG Mori DMU 90 P duoBLOCK
Working area:
X-axis: 900 mm
Y-axis: 1050 mm
Z-axis: 850 mm
(5-axis simultaneous machining)
Max. table load: 1.800 kg
Table diameter: 900 mm
CNC milling machine 3
Designation (manufacturer and type): Auerbach FBE 1200
Working area:
X-axis: 1200 mm
Y-axis: 600 mm
Z-axis: 600 mm
Workpiece weight incl. clamping device: 1000 kg
Control system: HEIDENHAIN
Welding Engineering
Welding robot (overhead attachment)
Designation (manufacturer): Cloos
Working range:
Workpieces up to max. length of: 3 m
Workpieces with max. width of: 1.4 m
Axles: 10
Multi-layer welds are possible.
Possible welding methods:
MAG shielding gas (pulse, S-pulse, normal)
You can view our welding certificates under Downloads.
In order to ensure optimal machining options, we have various manual welding workstations at our disposal, where the workpieces can be machined manually if required.
